Cutting · High-accuracy
SC-G High-Accuracy Cutting Line
±0.13 mm cuts at 180 m/min — STRON's high-accuracy line.
±0.13mm
Cutting accuracy
180m/min
Cutting speed
2–19mm
Thickness
6100×3300mm
Max glass
In the plant

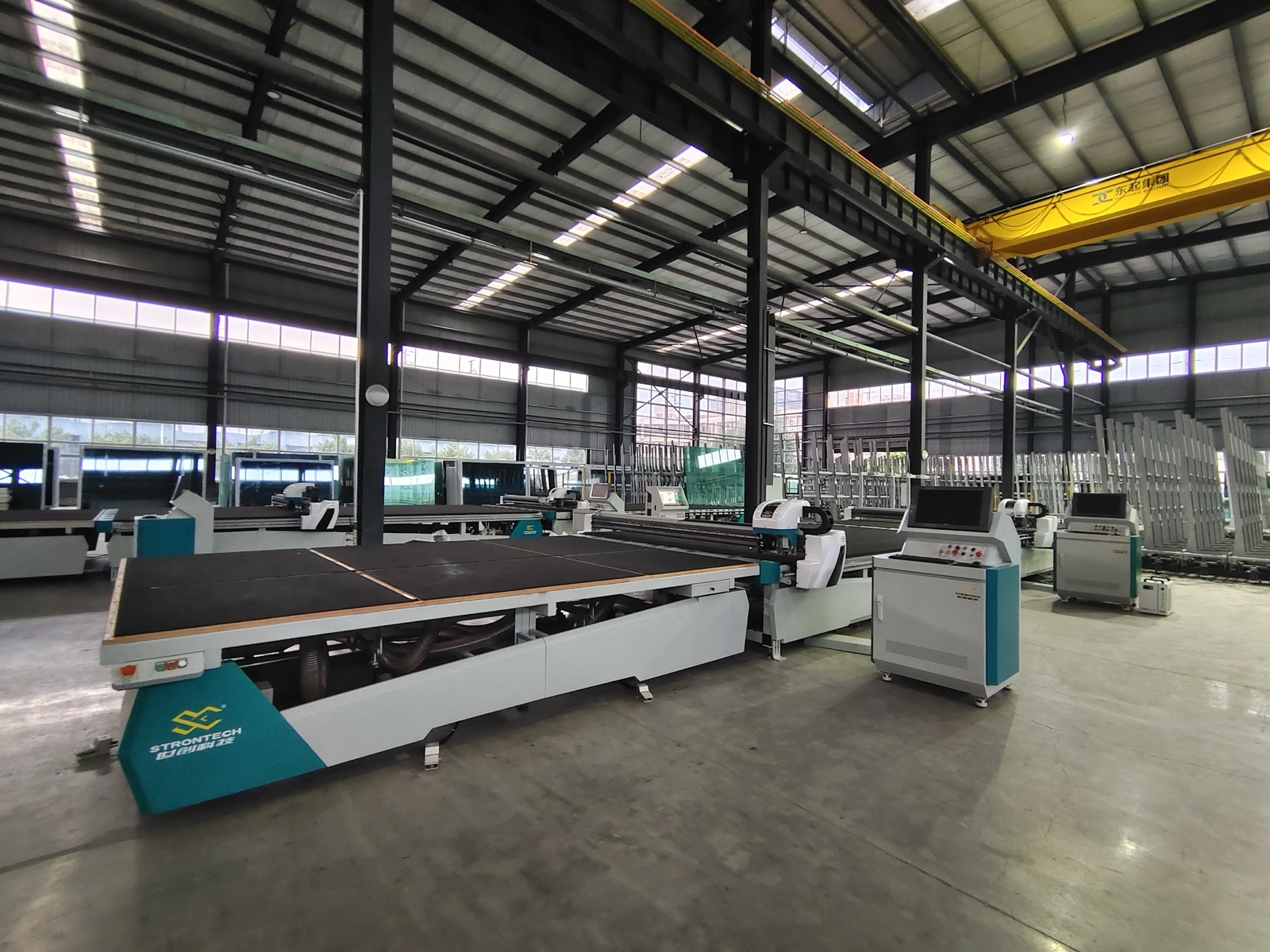

On the plant floor.
When the cut has to be precise and fast, this is the line. A high-precision drive holds ±0.13 mm across the full table at 180 m/min, with automatic loading on a 30–50 s cycle — for architectural and industrial glass from 2 to 19 mm.
Capability
Built for the line.
01
±0.13 mm across the table

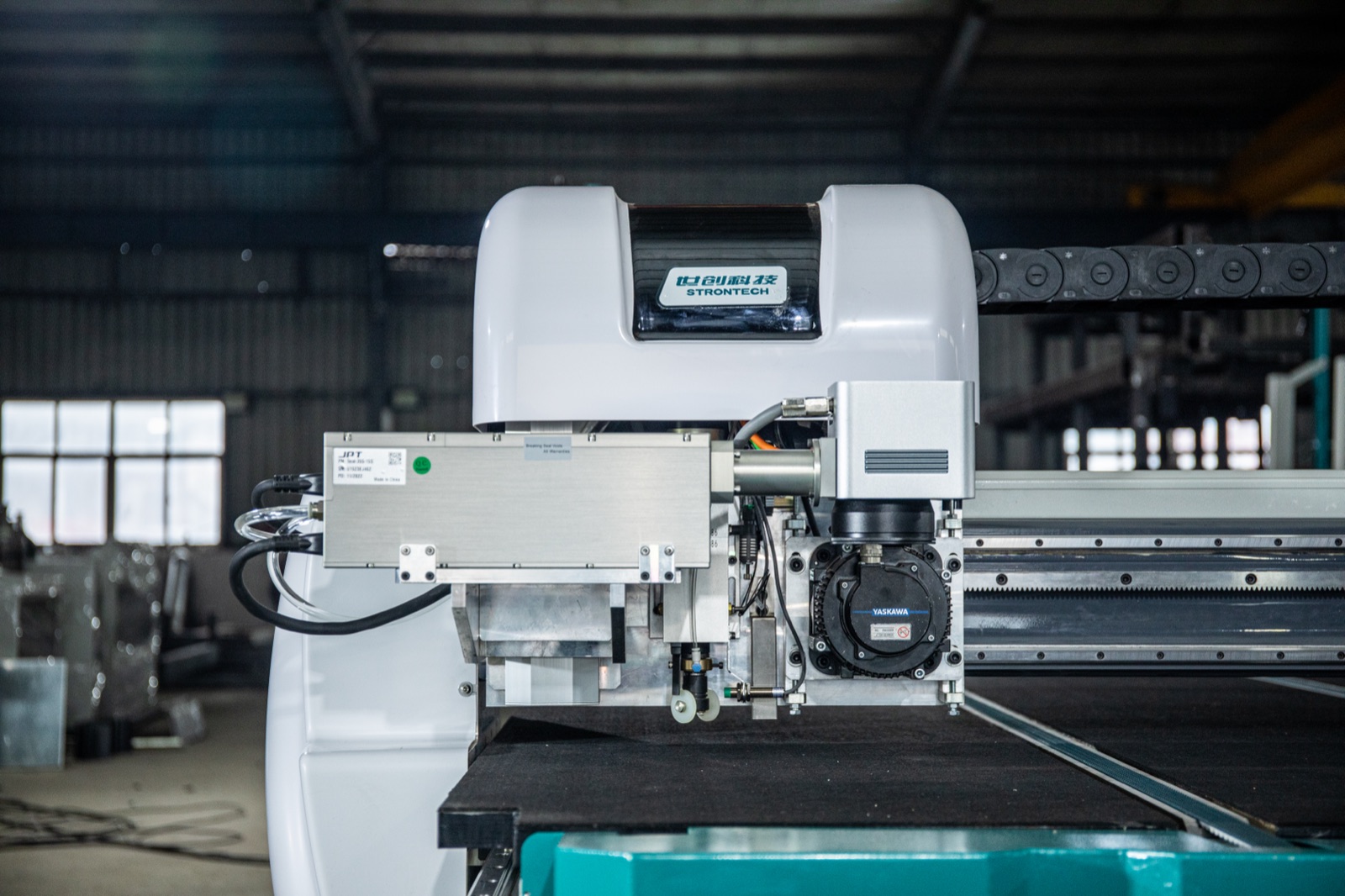

A high-precision drive and control hold ±0.13 mm edge to edge, so cut parts match the layout.
02
180 m/min
Fast linear cutting keeps the line moving at full production volume.
03
Loaded in 30–50 s
Automatic loading feeds the line on a 30–50 s cycle — no hand-loading bottleneck.
04
Belt transmission
A belt bed carries glass smoothly through the cutting station.
What it handles
Glass & thickness.
Float glass· 2–19 mm
Low-E / coated· 2–19 mm
Tinted & reflective· 2–19 mm
Specifications
The full spec.
Performance
| Cutting accuracy | ±0.13 mm |
| Cutting speed | 180 m/min |
| Cutting thickness | 2 – 19 mm |
| Loading cycle | 30 – 50 s |
| Transmission | Belt |
| Mains | 380 V / 50 Hz |
Transmission
Belt
Add-ons
Auto loadingAuto breakingGlass storage
Models & sizes
| Model | Max X (mm) | Max Y (mm) | Power / Spec |
|---|---|---|---|
| SC2520 | 2500 | 2000 | 13–15 kW |
| SC4228 | 4200 | 2800 | 15–18 kW |
| SC5133 | 5100 | 3300 | 23–26 kW |
| SC6133 | 6100 | 3300 | 23–26 kW |
Applications
What it's used for.
Not sure which machine you need?
Answer six quick questions and we'll spec the right machine.
Request a quote for the SC-G High-Accuracy Cutting Line.
Tell us your glass type, thickness and sheet sizes, and we'll configure the machine and send a quote.
SC-G High-Accuracy Cutting Line
SC-G Series · Cutting accuracy ±0.13mm
